Controlled electric heating
IGBT technology regulates electrical power to the furnace. Electric operation reduces dependence on gas or oil for heating and can be supplied with renewable electricity.
CREMATION TECHNOLOGY · MODULAR SOLUTIONS
Electric cremation.
Engineered with care.
Advanced cremation furnaces at the heart of a more flexible facility. Discover electric technology, carefully controlled processes and modular spaces for human and pet cremation.
Cremation technology with care at its core.
GREENCREMA / HUMANHuman cremation furnace
150 kg/hHuman cremation capacity
150 kg/hHuman cremation capacity
1 200 °CAfterburner chamber
ElectricThree-phase power
01 / THE TECHNOLOGY
Precision at every stage.
From electrical power management to the final treatment of flue gases, the furnace is designed around a controlled, repeatable working process.
Integrated afterburning
A secondary chamber, specified at 1,200°C, provides further treatment of combustion gases before they enter the exhaust system.
Clear process oversight

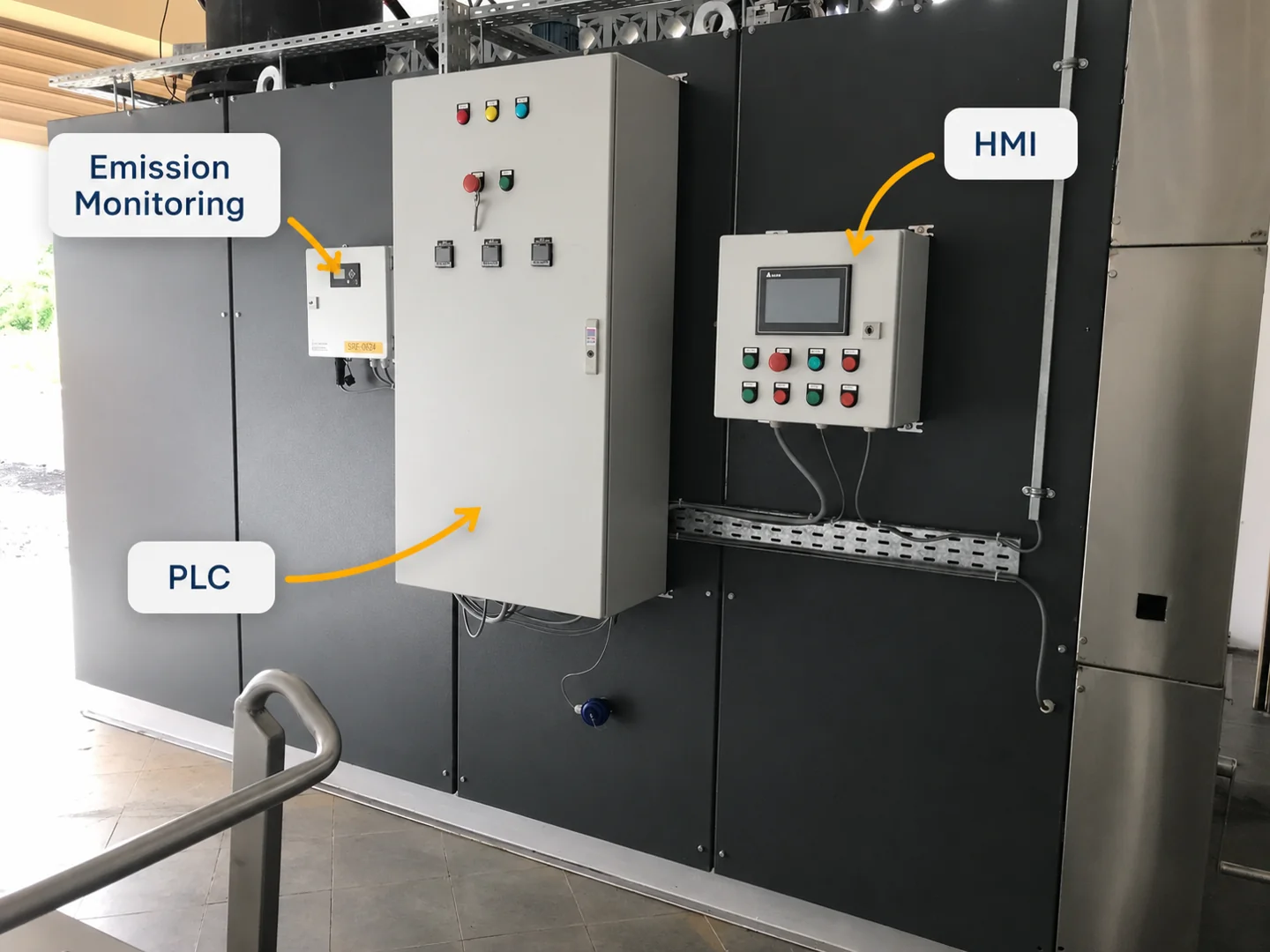

PLC control, an HMI operator interface and emission-monitoring equipment bring operation and process information together in one control system.
Built for professional daily operation.

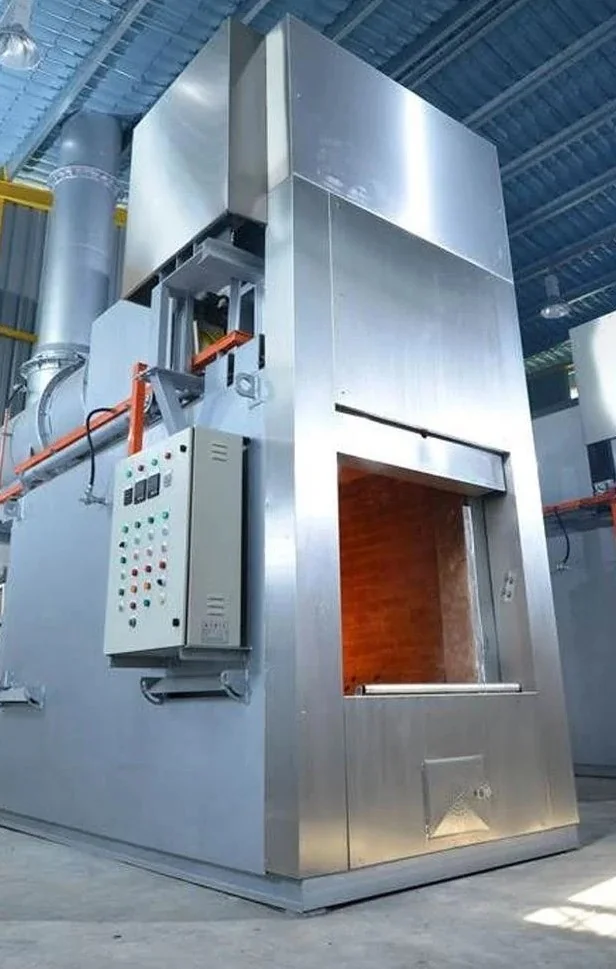

A human cremation capacity of 150 kg per hour, stainless-steel construction and a practical loading arrangement support an efficient, dignified workflow.
| Feature | Human cremation system |
|---|---|
| Cremation capacity | 150 kg/hour |
| Heating options | Electric or gas/electric hybrid |
| Controls | PLC + HMI + emission monitoring |
| Hydraulic loading equipment | Up to 500 kg |
| Chimney in proposed configuration | 9 m |
| Afterburner temperature | 1 200 °C |
Capacity is based on supplier information. Actual throughput depends on the load, operating cycle and configuration. Equipment and site requirements are confirmed in the quotation.
HUMAN / OPERATION
Designed around the operator

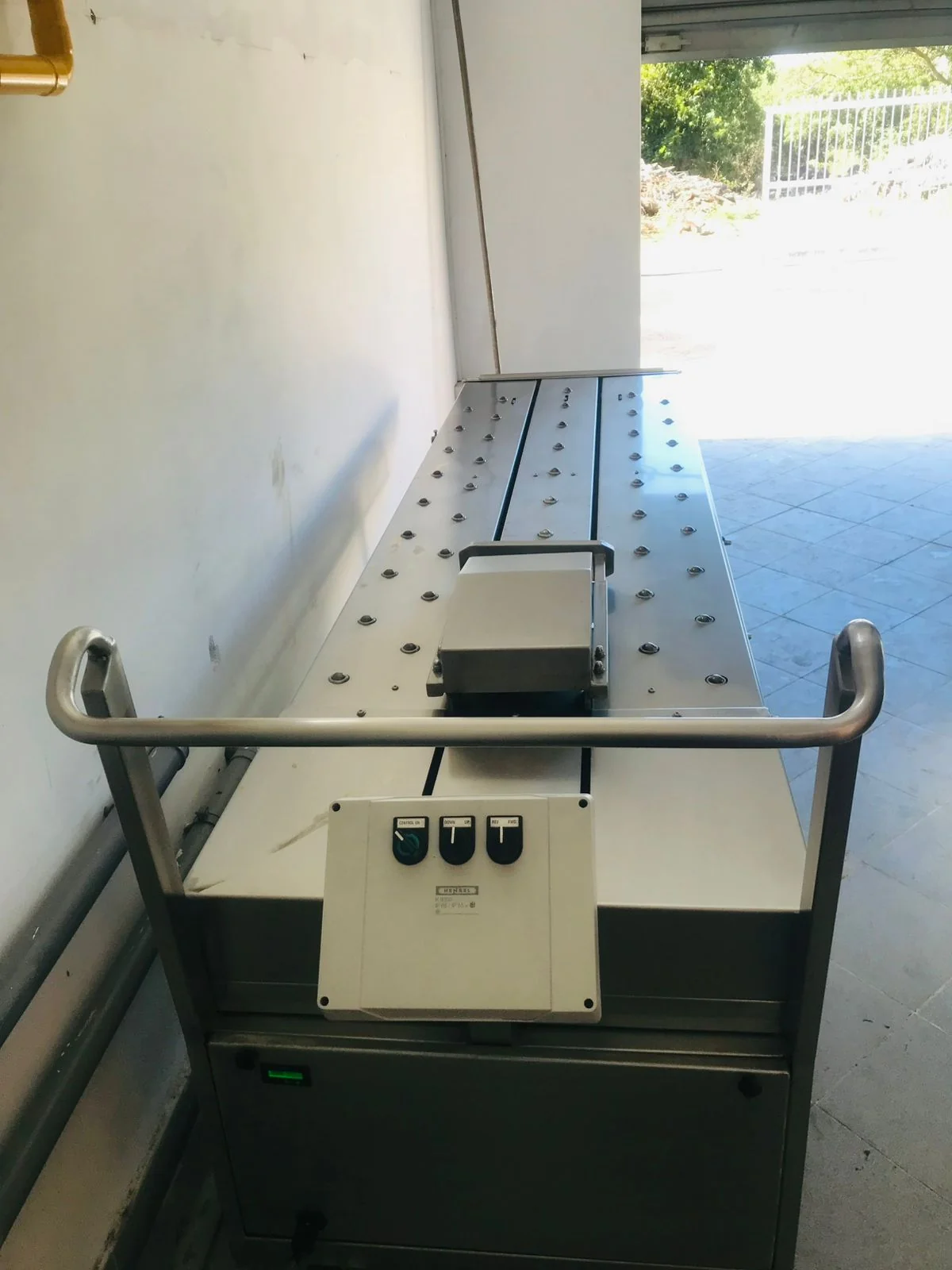

An inspection window, hydraulic coffin transfer and accessible controls support day-to-day work. A cremulator and ash-cooling cabinet can be specified as additional equipment.
02 / FLEXIBLE SOLUTIONS
One technology.
More ways to put it to work.
Install a furnace in your own building, add capacity with a relocatable crematorium or combine technical and farewell spaces in a modular chapel.
CAPACITY WHERE IT IS NEEDED
Mobile human crematoria
A transportable, steel-framed module brings the furnace and its working environment together. Suitable for new capacity, replacement projects and relocation between approved sites.
View details
A COMPLETE MODULAR SPACE

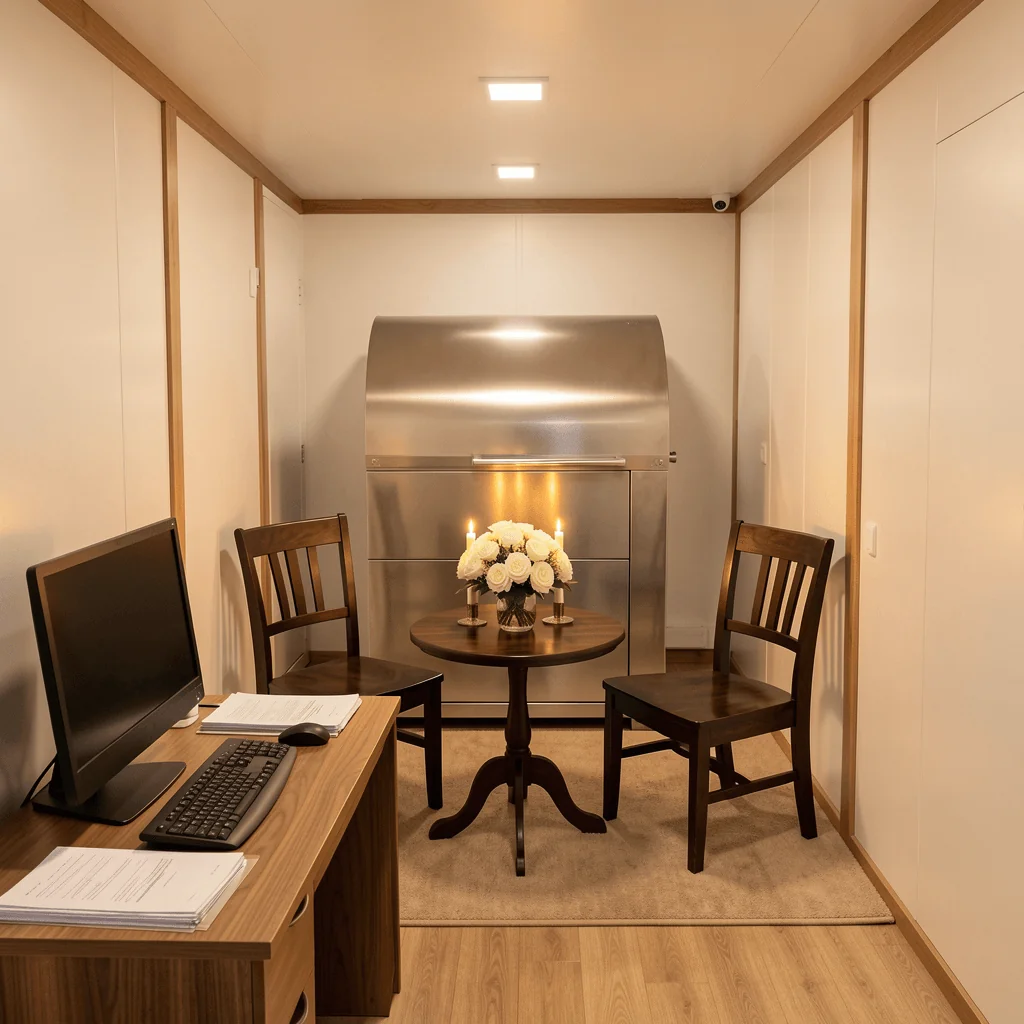

A crematorium within a chapel
A container-based solution with a dignified farewell area, operator space and cremation equipment. Adapt the exterior and interior to the setting and the people it serves.
View details
CARE FOR SMALL ANIMALS
Mobile pet cremation
An electric cremation solution for animals from 2 to 80 kg, arranged for transport on a suitable heavy-duty trailer or truck. For pet crematoria and veterinary service providers.
View details03 / THE MODULAR CREMATORIUM
A thoughtful space.
A practical installation.

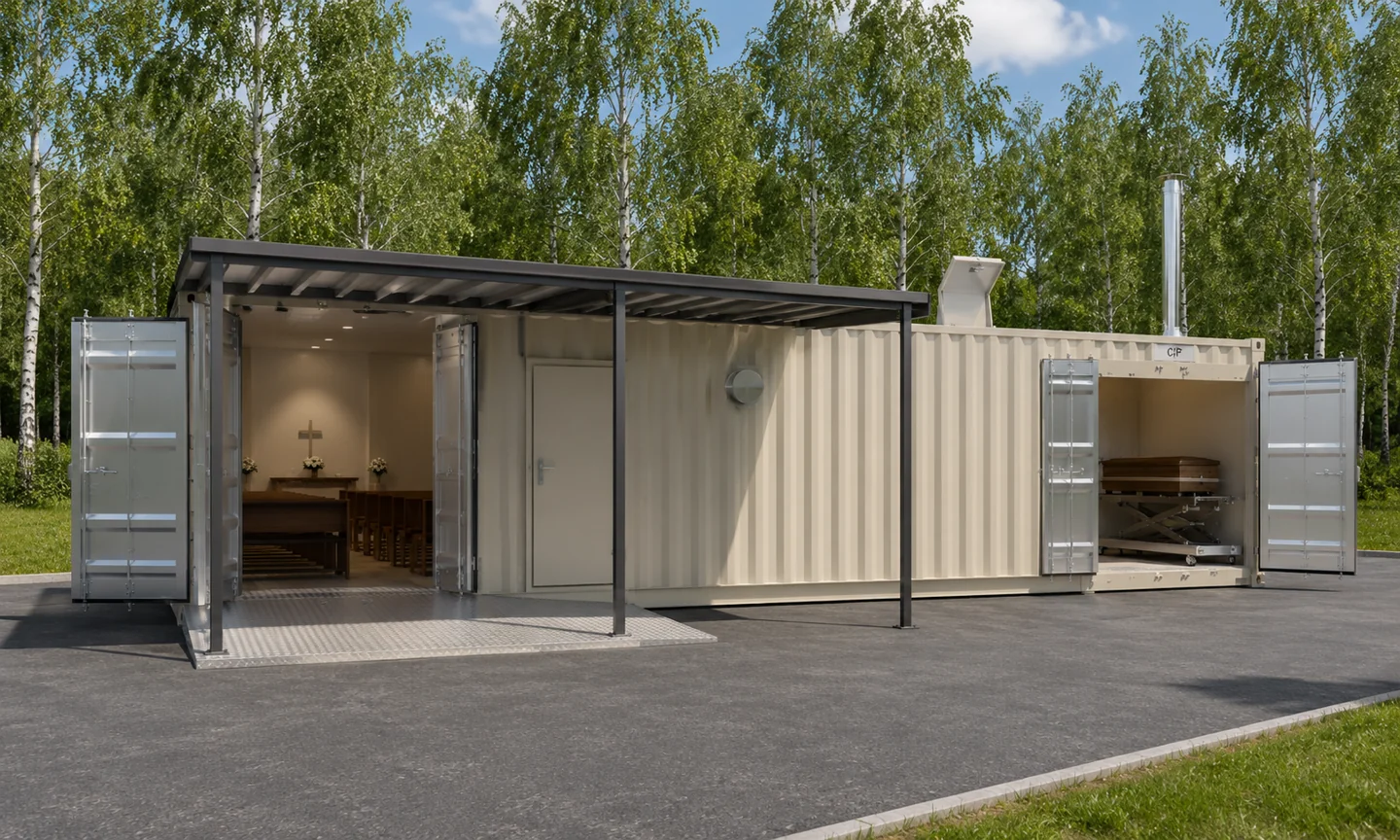

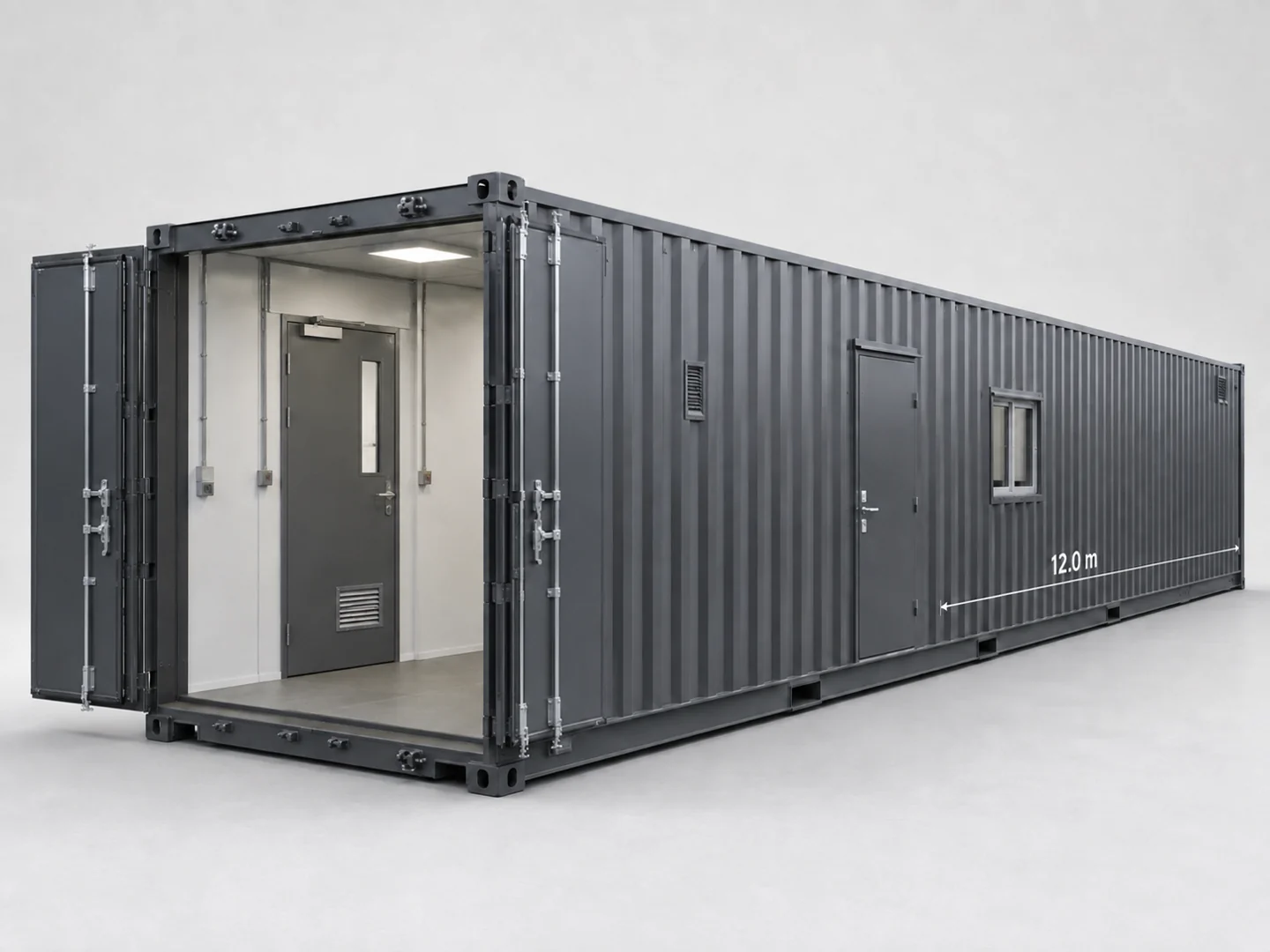

The proposed 12 × 2.5 m module offers approximately 30 m² for a coordinated cremation facility. Its steel structure can be finished in different colours and materials.
Prepared for colder climates
Insulation and an air-source heat pump help maintain the indoor environment when the furnace is not operating.
Hygiene built into the layout
Stainless-steel walls in the furnace area, durable tiled floors and clear transfer routes make the working space practical to maintain.
Room to adapt
Plan a farewell area, operator room or storage around your needs. The module can be relocated when the destination and necessary permissions are ready.
GREENCREMA / DESIGN

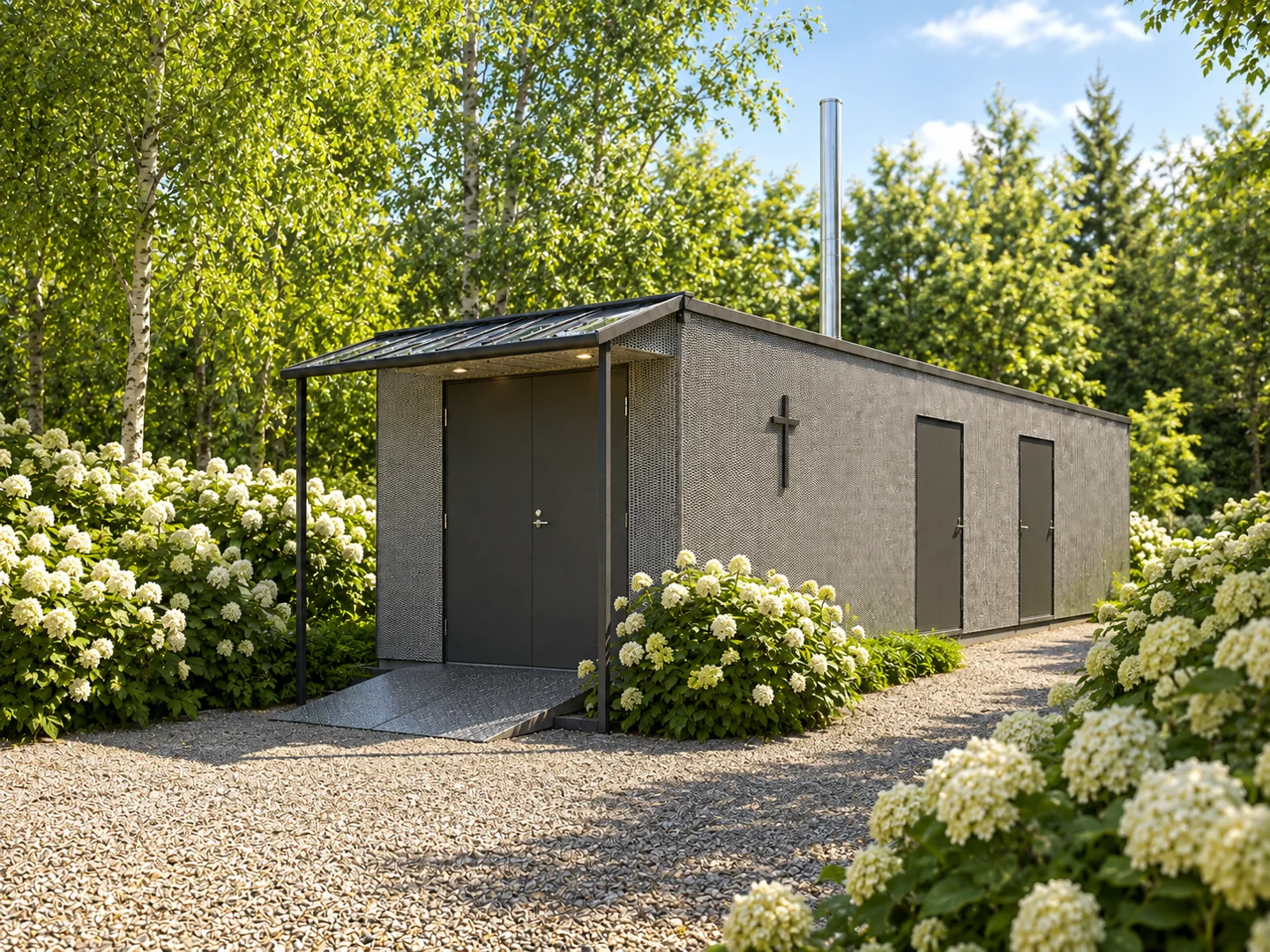

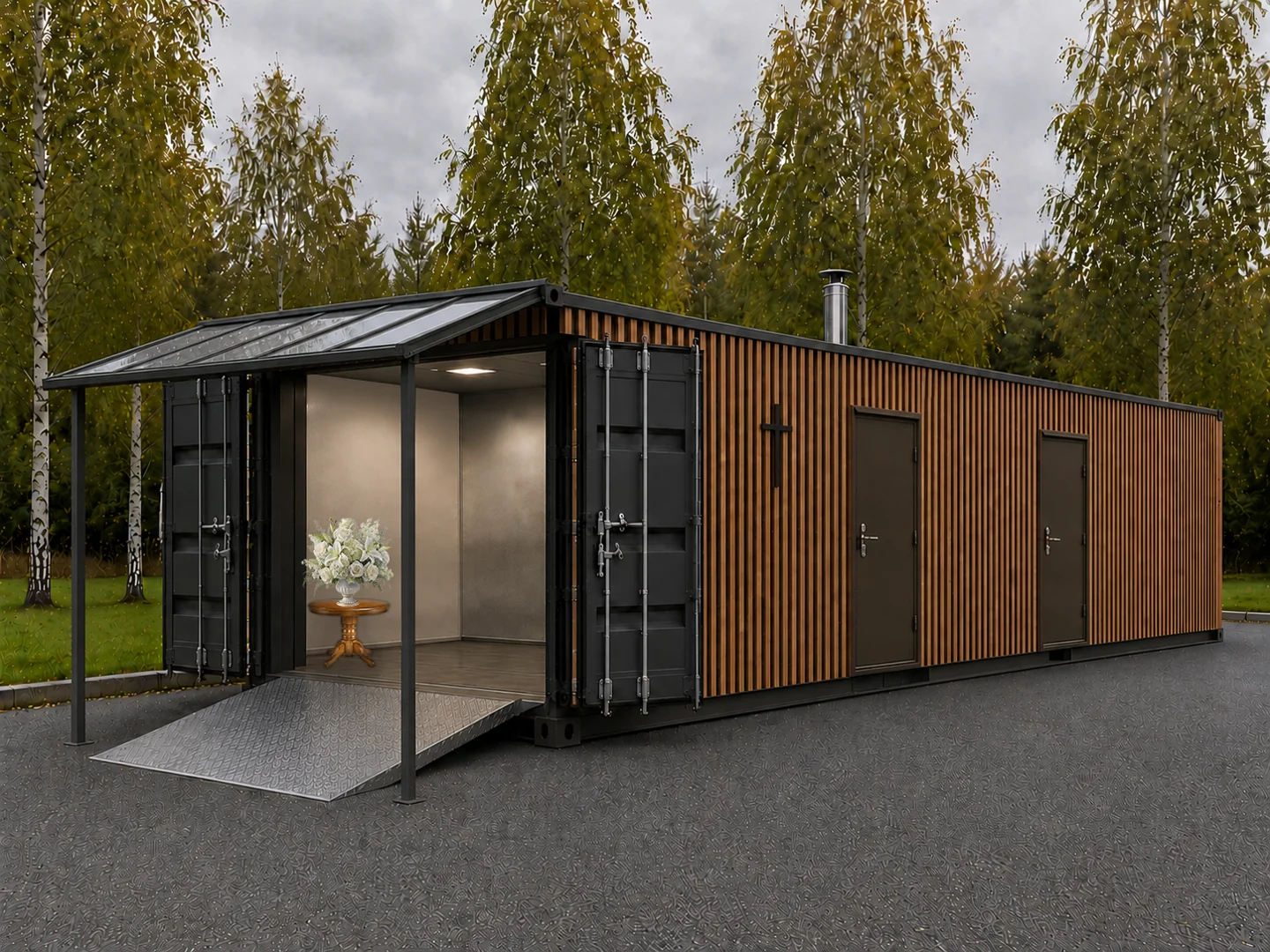

An exterior that belongs in its surroundings
Explore illustrative finishes. Cladding, colours, windows and interior arrangements are agreed for each project.
Concept illustrations show possible configurations and finishes.
A clear route through the building
01Farewell space
02Operator room
03Cremation furnace
04Loading area
Illustrative layout · approximately 12 × 2.5 m · final design adapted to the project
04 / PET CREMATION
The same care.
On a smaller scale.

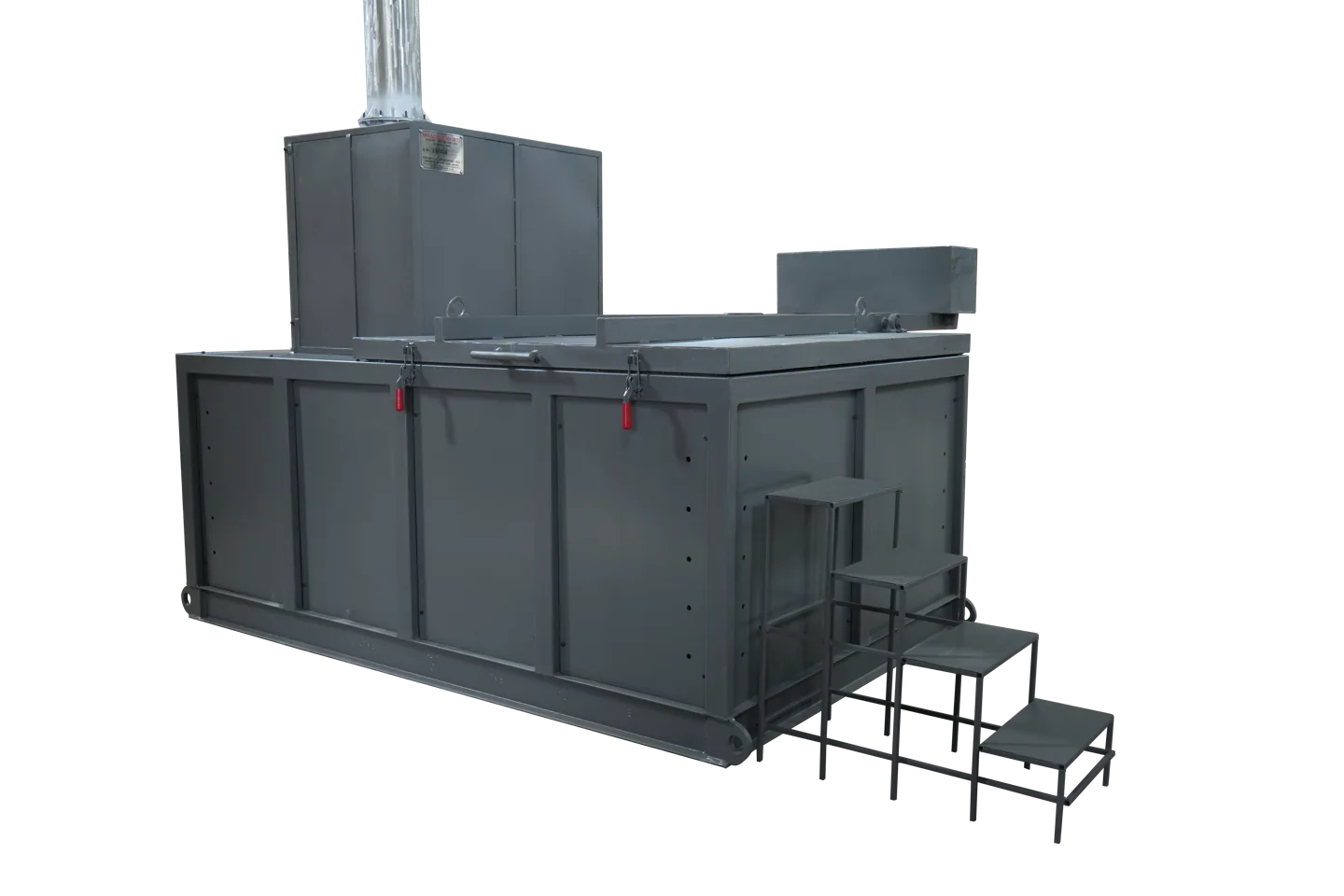

A dedicated electric furnace with IGBT power control and an integrated afterburner chamber. A mobile arrangement lets operators plan services across approved locations.
- Three-phase electrical operation
- Weather-protected electrical and control systems
- Trailer, flatbed or permanent installation
- Electric cremulator in the proposed delivery
2–80 kgAnimal weight range
6 mProposed chimney height
1 200 °CAfterburner chamber
Transport planned with the equipment
The presentation specifies a trailer with at least 3,000 kg load capacity. The complete transport arrangement, electrical connection and site requirements are confirmed for your project.
Short cycles for smaller animals
Supplier examples indicate around 10 minutes for a small animal of approximately 3 kg and under an hour for animals up to 80 kg. Indicative energy use is under 3 kWh and 30 kWh respectively; conditions and cycle scope must be confirmed for the selected equipment.
05 / FROM PROJECT TO OPERATION
Support beyond the furnace.
A good installation starts with the right specification and continues with practical training and planned maintenance.
Define your project
Share your location, capacity needs, available utilities and preferred configuration. We prepare a project-specific quotation.
Plan the installation
Agree the equipment, layout, transport and commissioning. Local permissions, foundations and connections are coordinated for the site.
Train your team
The human crematorium proposal includes three days of on-site operator training, supporting safe and confident daily use.
Keep it working
Plan professional servicing and routine care. The human presentation proposes annual professional maintenance.
A few practical questions
Can the furnace be installed in an existing building?
Yes. The furnace can be specified for installation in your own premises, subject to space, structural, utility and site requirements.
Is a hybrid version available?
The human cremation system is also offered in a gas/electric hybrid configuration. Discuss the appropriate energy arrangement with our sales team.
Can a mobile unit operate anywhere?
Each location needs suitable access, connections and the necessary local permissions. Relocatable construction does not remove site approval requirements.
How much does a solution cost?
Every solution is quoted for its configuration and delivery scope. Contact sales for a furnace, complete module, chapel or mobile pet cremation quotation.
LET’S PLAN YOUR NEXT STEP
Tell us what
you want to build.
A new facility, additional capacity or a mobile service. Talk to the team that fits your project.
